WWP wheel load scale
(Perfect for Environmental & Demolition waste removal
applications)
also often used by
Fire Departments, EMS and Vehicle Mfrs.
Available in two styles (same price)

|
|
|
|

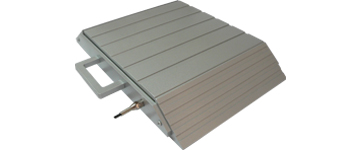

Weigh Pads with external display |

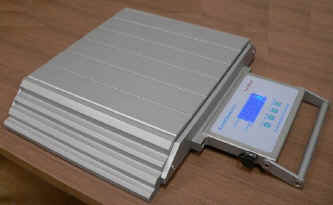

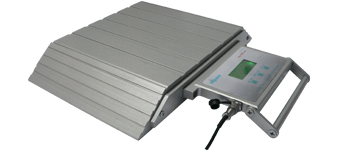

Weigh Pads with built-in display |
|
|
|
|
Close
up AX-5 indicator in a portable case |

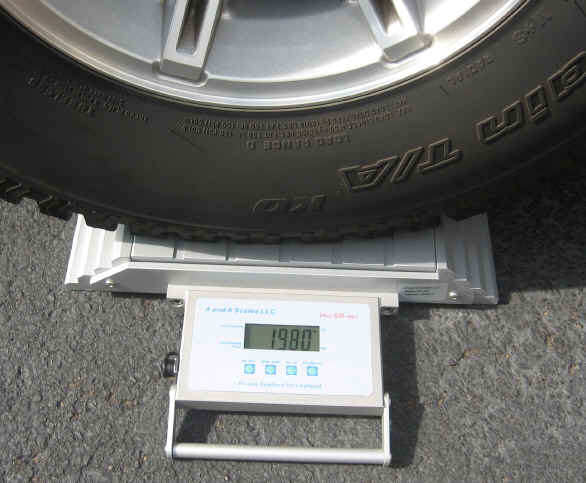

Close
up of built-in display |
WP-20K wheel load scale
portable scale system
that is ideal for determining center of gravity, validating design weights,
measuring down force, and certifying equipment, trailers, tractor
trailers,
coaches, and other large wheeled vehicles.
 | 20,000
lb capacity x
10 lb sensitivity per scale
|
| Comes
with AX-5 external indicator in portable case or a Built-in display.
|
|
Weighs
only
35 lbs, allows single person setup and operation.
|
|
Low
height means low ramp angle and a high degree of accuracy.
|
|
Wide
platform will accommodate dual tires easily and safely.
|
|
Non-skid
pattern ensures maximum grip in wet or snowy conditions.
|
|
Weighs
in Lbs & Kgs.
|
|
|
|
Model AX-5 weight indicator in portable case
shown with optional built-in printer
All the scale pads connect to one display.
Displays in Lbs & Kgs, RS232 printer/computer output
Internal rechargeable battery (12 hour continuous use battery life, 8 hour
recharge).
In WHEEL WEIGHING mode with the total function it is possible to
print/display:
The weight of the single platforms, sum of any of their combinations,
total weight of all the platforms
The number of weighments performed, the accumulated weight and the sum of
the subtotals carried out.
Prints the center of gravity coordinates.
|
Price
includes the AX-5 weight indicator or Built-in display
| Model |
Capacity |
Prices |
WP-40K
(set of two 20,000lb scales)
|
40,000 lb x 10 lb increments
20,000lb capacity per scale |
$2350 |
WP-80K
(set of four 20,000lb scales)
|
80,000 lb x 10 lb increments
20,000lb capacity per scale |
$3900 |
WP-120K
(set of six 20,000 lb scales)
|
120,000 lb x 10 lb increments
20,000lb capacity per scale |
$6496 |
| |
|
|
| Options |
|
|
| Built-in roll tape printer |
|
$450 |
| Ability to view individual wheel weights one at a time &
total |
|
$195 |
The WP-20K scales are also sold individually.

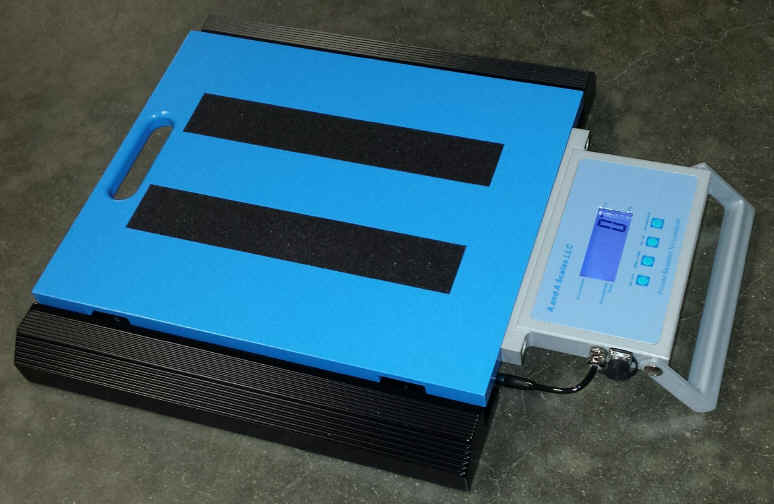

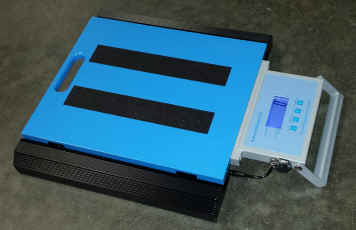

WP-20K with built-in display
Measurements are in millimeters (25.4 mm = 1 inch)
|
