Ultra Low Profile weigh pad scales
 40,000 lb per pad / 80,000lb per axle (only 0.7" high), wide enough to accommodate double tires
(Perfect for Environmental & Demolition waste removal applications)
also often used by Fire Departments, EMS and Vehicle Mfrs.

Capacity
20,000 lb or 40,000 lb per pad
Graduation value 10 lb

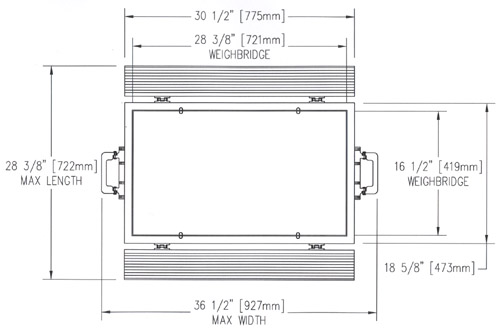

Overall dimensions See sketch
Active weighing surface 28.4" width x 16.5" length (in traffic direction)
Weight 52 lb. (with ramps), 42 lb. (pad only)
Temperature range -20°C to 60°C
Ground requirement Concrete or asphalt surface preferred

Model AX-5 weight indicator

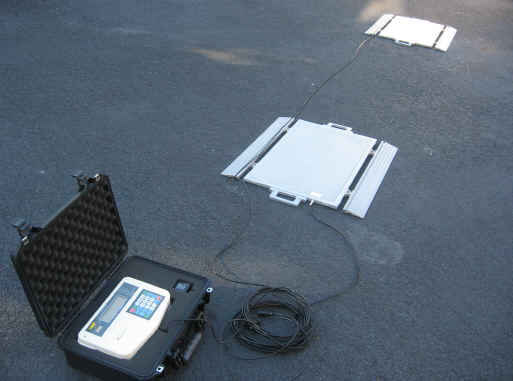

Model AX-5 weight indicator in portable case
shown with built-in printer

All the scale pads connect to one display.  Displays in Lbs & Kgs, RS232 printer/computer output
Internal rechargeable battery (12 hour continuous use battery life, 8 hour recharge).
In WHEEL WEIGHING mode with the total function it is possible to print/display:
The weight of the single platforms, sum of any of their combinations, total weight of all the platforms
The number of weighments performed, the accumulated weight and the sum of the subtotals carried out.
Prints the center of gravity coordinates.

Prices includes the AX-5 weight indicator

Model Capacity

With AX-5 display
Ultra Low profile- 40K-20
(Set of 2 scales)		 40,000 lb x 10 lb increments
(2) 20,000 lb capacity scales
One axle at a time

$3645
Ultra Low profile-80K-20
(Set of 4 scales)		 80,000 lb x 10 lb increments
(4) 20,000 lb capacity scales
Two axles at a time 		$6290
Ultra Low profile-120K-20
(Set of 6 scales)		 120,000 lb x 10 lb increments
(6) 20,000 lb capacity scales
Three axles at a time		 $9095

Ultra Low profile- 80K
(set of 2 scales)		 80,000 lb x 10 lb increments
(2) 40,000lb capacity scales
One axle at a time		 $3646
Ultra Low profile - 160K
(set of 4 scales)		 160,000 lb x 10 lb increments
(4) 40,000lb capacity scales
Two axles at a time		 $6290
Ultra Low profile-240
(Set of 6 scales)		 240,000 lb x 10 lb increments
(6) 40,000lb capacity scales
Three axles at a time 		$9095

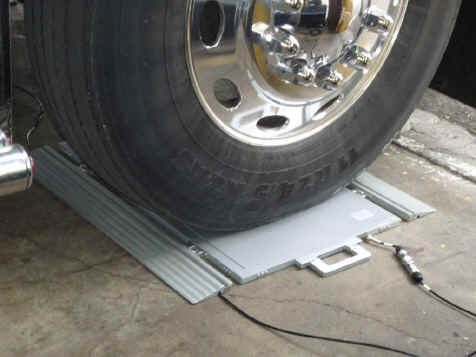

Close up of Ultra low profile axle scale

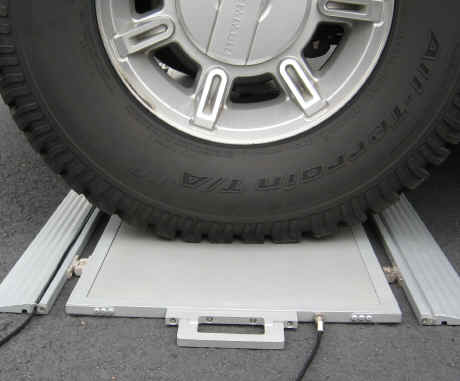

Ultra low profile weigh pad with ramps

Click here for more photos
