PWW Portable Wheel Weigher
Available in 30,000 lb, 10,000 lb & 5000 lb capacities
Many resolutions to choose from

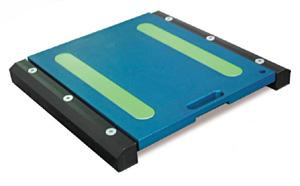

PWW-30K with built-in ramps
30,000 lb capacity per pad / 60,000lb per axle
10,000 lb per pad x 5 lb or 5,000 lb per pad x 1 lb |
|
  |
 |
 | 30,000
lb capacity per pad / 60,000lb per axle also available in 10,000 lb &
5000 lb capacities.
|
| Constructed
of high strength aluminum
|
| Low
height means low ramp angle and a high degree of accuracy
|
|
24"
Wide
platform will accommodate dual tires easily and safely.
|
|
Non-skid
pattern ensures maximum grip in wet or snowy conditions.
|
|
Weighs
in Lbs & Kgs.
|
Choice
of two different weight indicators

|
|
Model AX-5 weight indicator in portable case with
built-in thermal printer
All the scale pads connect to one display.
Displays in Lbs & Kgs, RS232 printer/computer output
Internal rechargeable battery (12 hour continuous use battery life, 8 hour
recharge).
In WHEEL WEIGHING mode with the total function it is possible to
print/display:
The weight of the single platforms, sum of any of their combinations,
total weight of all the platforms
The number of weighments performed, the accumulated weight and the sum of
the subtotals carried out. Company name, address and phone can be added to
the printout as well as an ID number with the time & date. Prints the center of
gravity coordinates.
|
|

|
|
Standard weight indicator in portable case with
built-in dot matrix printer
All the scale pads connect to one display.
Displays in Lbs & Kgs, RS232 printer/computer output
Internal rechargeable battery (12 hour continuous use battery life, 8 hour
recharge).
WHEEL WEIGHING mode it is possible to
print/display:
The weight of the individual platforms, sum of any of their combinations,
total weight of all the platforms and the axle weights
Prints ID number, time & date, individual wheel weights, axle weights
as well as Gross Tare Net. |
| Model |
Capacity |
with Standard display & printer |
With
AX-5 display & printer |
PWW-30K-2
(set of two 30,000lb scales)
|
60,000 lb x 10 lb increments
30,000lb capacity per scale |
$2295 |
$2895 |
PWW-30K-4
(set of four 30,000lb scales)
|
120,000 lb x 10 lb increments
30,000lb capacity per scale |
$4150 |
$4450 |
PWW-30K-6
(set of six 30,000 lb scales)
|
180,000 lb x 10 lb increments
30,000lb capacity per scale |
$6791 |
$6791 |
| |
|
|
|
PWW-10K-2
(set of two 10,000 lb scales) |
20,000 lb x
2 lb increments
10,000 lb x 2 lb per scale |
$2395 |
$2895 |
PWW-10K-4
(set of four 10,000 lb scales) |
40,000 lb x
2 lb increments
10,000 lb x 2 lb per scale |
$4150 |
$4450 |
PWW-10K-6
(set of six 10,000 lb scales) |
60,000 lb x
2 lb increments
10,000 lb x 2 lb per scale |
$6791 |
$6791 |
| |
|
|
|
PWW-5K-2
(set of two 5000 lb scales) |
10,000 lb x
1 lb increments
5,000 lb x 1 lb per scale |
$2395 |
$2895 |
PWW-5K-4
(set of four 5,000 lb scales) |
20,000 lb x
1 lb increments
5,000 lb x 1 lb per scale |
$4150 |
$4450 |
PWW-5K-6
(set of six 5,000 lb scales) |
30,000 lb x
1 lb increments
5,000 lb x 1 lb per scale |
$6791 |
$6791 |
Available with built-in ramps (above)

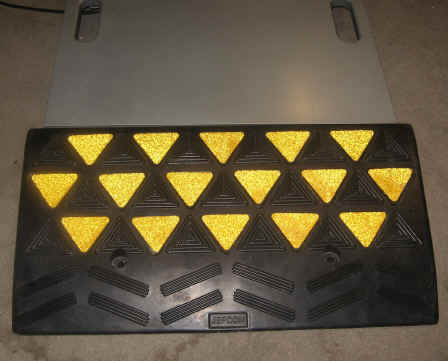

or removable hard rubber ramps (below)

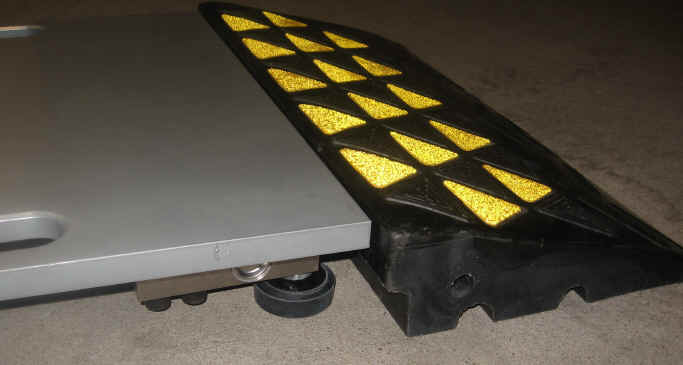

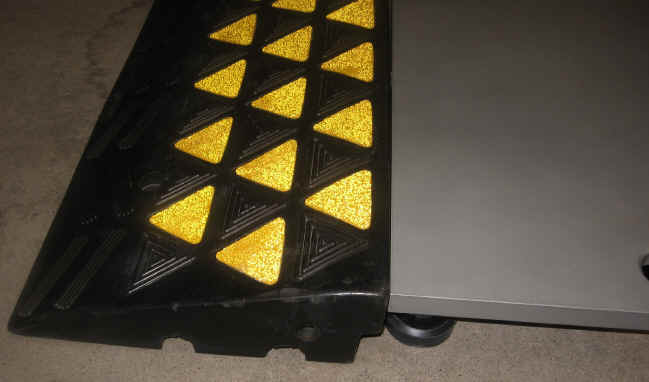

Also available with removeable hard rubber ramps
Ramp has two holes for securing it to the ground
|
