LB36 Portable Pallet Scale
[ Home ] [ Up ]

A and A Scales LLC

Phone 800-481-4114 or 973-800-3965
Open 7 days a week

No sales tax for customers outside New Jersey

We will not be undersold!



LB36-4H Portable Pallet Scale
Price: $595

LB36-4H Load Bars & Digital Display
36" long each - 5000 lb total capacity
Price: $595

5000 lb capacity portable pallet scale.  Simply bolt on a metal or wooden platform to create a pallet scale

Includes one pair of 36" long load bars and a digital weight indicator

20 ft cable from each bars to Weight Indicator

Indicator can run on "AA" batteries or electricity (ac adapter included)

RS232 computer output

Large easy to read 1" high LCD digits

"HOLD" feature locks onto the weight

Portable, each load bar weighs 30 lbs.
Weighs in Lbs & Kgs


close up of the digital display
Runs on "AA" batteries & electricity
(AC adapter included)


Simply bolt on a wooden or metal platform to create a pallet scale

The Load bars are a highly durable scale set designed with simplicity and portability in mind. In just a few minutes the entire system can be setup and ready to weigh. The standard system includes two load bars, 20' of indicator cable and a  digital weight indicator. This fully portable system can be used for pallets, under tanks, hoppers and many other applications. Standard capacity is 2,500 pounds per bar with a total system capacity of 5,000 lbs.

Standard Features

Light Weight & Portable: Can be positioned to weigh easily, or store when not in use.  Quick and easy setup and break down for total portability.

Low Profile: Less than 4" high. Supplied in pairs. Total capacity of beams is 5000 pounds per pair.

Push Button Tare: Simple one button Tare provides for the acquiring of the tare and subsequent display of Gross/Net weight values.

Full Duplex RS-232 Port: The Full Duplex RS-232 output to a printer, computer, or other compatible devices.

The weight indicator has the following front panel keys: ON/OFF, UNITS (lb/kg), TARE, ZERO, HOLD, NET/GROSS.  Shipping is $60 by UPS ground

Dimensions Capacity Price
36" long x 4" high 5000 lb x 1lb
2500 kg x 0.5kg		 $595

        Shipping is $60 by UPS ground within the continental United States


Rear View of the Display

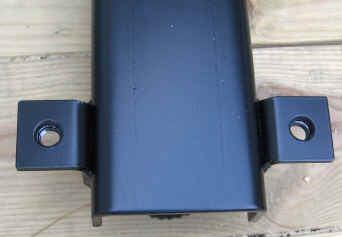

Mounting Tabs for attaching platform
