HD-30K 30,000 lb capacity per scale
 | IP68 Stainless Steel load cells & waterproof junction box for harsh
working conditions |
| Weighing Surface: 28" x 17.7"
| Overall Dimensions: 28" x 22" |
| Fitted with wheels for greater portability
| Sturdy aluminum construction
| 32 ft cable with quick disconnect for connecting platform to indicator
| Built-in ramps with special non-slip rubber applied underneath for good grip
on most surfaces
| Weight: 57 lbs each |
| | | | |

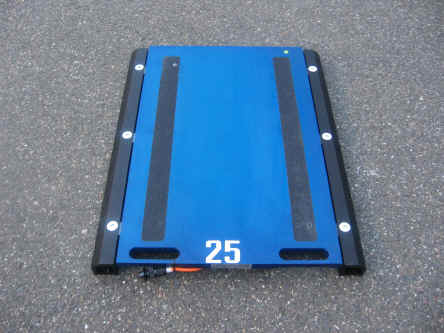

28" wide x 17.7" weighing surface
Stainless Steel load cells & waterproof junction box

|
|
Model AX-5 weight indicator in portable case
shown with optional built-in printer
All the scale pads connect to one display.
Displays in Lbs & Kgs, RS232 printer/computer output
Internal rechargeable battery (12 hour continuous use battery life, 8 hour
recharge).
In WHEEL WEIGHING mode with the total function it is possible to
print/display:
The weight of the single platforms, sum of any of their combinations,
total weight of all the platforms
The number of weighments performed, the accumulated weight and the sum of
the subtotals carried out.
Two Identification numbers can be entered. Up to 6 digits each for truck
& trailer IDs. Can be set to print automatically. Prints the center of
gravity coordinates.
|

| Model |
Capacity |
With AX-5 display |
HD-30K-2
Heavy Duty Wheel Weigher
(Set
of 2 scales & AX-5 display) |
60,000
lb x 10 lb increments
(2) 30,000 lb capacity scales
One axle at a time |
$3350 |
HD-30K-4
Heavy Duty Wheel Weigher
(Set of 4 scales & AX-5 display) |
120,000
lb x 10 lb increments
(4) 30,000 lb capacity scales
Two axles at a time
|
$5995 |
HD-30K-6 Heavy Duty Wheel Weigher
(Set of 6 scales & AX-5 display) |
180,000 lb x 10 lb increments
(6) 30,000 lb capacity scales
Three axles at a time |
$8995 |
| |
|
|
| Options |
|
|
Built-in
roll tape printer with
time & date for AX-5 |
|
$295 |
| Leveling Pad (each section is 4 ft long x 28" wide) |
Used for leveling the axles |
$250 each |

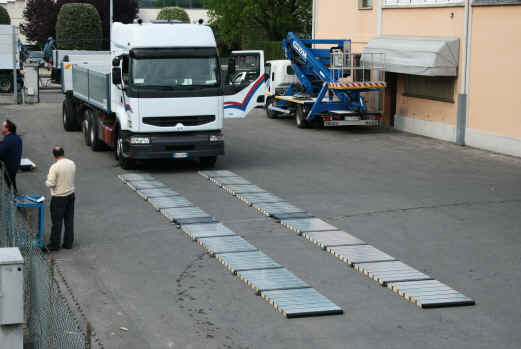

Set of (2) HD-30K scales with leveling pads
each leveling pad section is 4 ft long
Set of two scales used with the levelers
Built-in wheels for greater portability
wheels only touch the ground when it is tilted up
|
