5000 lb capacity Pallet Scale
Price: $579
Free shipping in the continental U.S.
4' x 4'  5,000 lb capacity pallet scale with digital display
 4' x 4' or 5' x 5' size scale base
 5,000 lb capacity or 10,000 lb capacity
 Heavy duty painted steel scale base
 Digital weight indicator with 15 ft cable
 Factory PreCalibrated
 Computer / Printer output standard
 One year warranty
Free shipping in the continental U.S.
The pallet scales listed below are for shipping, receiving & internal use
Click here for
legal for trade scales
Model
Price

4' x 4'  5000 lb pallet floor scale with display
$579

4' x 4'  10,000 lb pallet floor scale with display
$645

5' x 5'  5000 lb pallet floor scale with display
$695

5' x 5'  10,000 lb pallet floor scale with display
$695

Options


Painted steel
ramp 4 ft wide x 40" long
$250

Painted steel
ramp 5 ft wide x 40" long
$325

*Add $150 to the prices above for a stainless steel display



T500E
Metal
& Plastic

T500ESS
Stainless
Steel

TI600ESS
Stainless Steel
with 09 keypad
Dimensions
Capacity x Sensitivity
with TI500E
w/ TI500ESS
w/ TI600ESS
43" x 20"
660 lb x 0.2
$595


59" x 30"
2,000 lb x 1*
$649
$995
$1,050
3' x 3'
2,500 lb x
0.5 lb*
$1,099
$1,275
$1,325
3' x 3'
5,000 lb x
1 lb
$1,099
$1,275
$1,325





4' x 4'
1,000 lb x
0.2 lb*
$1,195
Free shipping
$1,325
$1,450
4' x 4'
2,000 lb x
0.2 lb*
$1,195
Free shipping
$1,325
$1,450
4' x 4'
2,500 lb x
0.5 lb*
$1,195
Free shipping
$1,325
$1,450
4' x 4'
5,000 lb x 1
lb or
5,000 lb x
0.5 lb*
legal for trade
$1,195
Free shipping

$1,325
$1,450
4' x 4'
10,000lb x 2 lb or 10,000 lb x 1 lb*
$1,295
Free shipping

$1,475
$1,526
4' x 4'
20,000 lb x 5 lb or 20,000 lb x 2 lb*
$1,889
$1,970
$2,035





5' x 5'
1,000 lb x
0.2 lb or
1,000 lb x
0.1 lb*
$1,619
$1,719
$1,770
5' x 5'
2,000 lb x 0.2 lb*
$1,619
$1,719
$1,770
5' x 5'
2,500 lb x 0.5 lb
$1,619
$1,719
$1,770
5' x 5'
5,000 lb x 1
lb or
5,000 lb x
0.5 lb*
$1,619
Free shipping

$1,719
$1,770
5' x 5'
10,000lb x 2 lb or 10,000 lb x 1 lb*
$1,734
Free shipping

$1,834
$1,885
5' x 5'
20,000 lb x 5 lb or 20,000 lb x 2 lb*
$2,300
$2,400
$2,451
6' x 8'
20,000 lb x 5 lb or
20,000 lb x 2 lb*
$3750
$3825
$3925
Other sizes available




Optional Ramps




4' x 3'
up to 10,000lb
$360 ea.
weighs 130 lbs

4' x 4'
20,000lb
$384 ea.
weighs 150 lbs

5' x 3'
10,000lb
$499 ea.


5' x 4'
20,000lb
$650 ea.


Roll tape printer
dot matrix
$295


Label printer
Direct thermal
$450


Replacement Parts
The scales above come with
the indicator



T500E indicator
$295



T500ESS indicator
$395



TI600ESS indicator
$450



Dimensions
Capacity x Sensitivity
with TI500E
w/ TI500ESS
w/ TI600ESS
4' x 4'  5000 lb
Not legal for trade
5,000 lb x 1 or 0.5lb
$995

$1,150
$1,195
50" x 20"
1,000 lb x 0.5*
$895
$995
$1,050
3' x 3'
2,500 lb x
0.5 lb*
$1095
$1,275
$1,325
3' x 3'
5,000 lb x
1 lb
$1095
$1,275
$1,325





4' x 4'
1,000 lb x
0.2 lb*or
1,000 lb x
0.1 lb*
$1,195
Free shipping
$1,325
$1,450
4' x 4'
2,000 lb x
0.2 lb*
$1,195
Free shipping
$1,325
$1,450
4' x 4'
2,500 lb x
0.5 lb*
$1,195
Free shipping
$1,325
$1,450
4' x 4'
5,000 lb x 1
lb or
5,000 lb x
0.5 lb*
$1,195
Free shipping
$1,325
$1,450
4' x 4'
10,000lb x 2 lb or 10,000 lb x 1 lb*
$1,295
Free shipping
$1,475
$1,526
4' x 4'
20,000 lb x 5 lb or 20,000 lb x 2 lb*
$1,889
$1,970
$2,035





5' x 5'
1,000 lb x
0.2 lb or
1,000 lb x
0.1 lb*
$1,619
$1,719
$1,770
5' x 5'
2,000 lb x 0.2 lb*
$1,619
$1,719
$1,770
5' x 5'
2,500 lb x 0.5 lb
$1,619
$1,719
$1,770
5' x 5'
5,000 lb x 1
lb or
5,000 lb x
0.5 lb*
$1,619
$1,719
$1,770
5' x 5'
10,000lb x 2 lb or 10,000 lb x 1 lb*
$1,734
$1,834
$1,885
5' x 5'
20,000 lb x 5 lb or 20,000 lb x 2 lb*
$2,300
$2,400
$2,451
Other sizes available




Optional Ramps




44" x 36" ramp
2,000 lb
$299


4' x 3'
10,000lb
$360
weighs 130 lbs

4' x 4'
20,000lb
$399
weighs 150 lbs

5' x 3'
10,000lb
$475


5' x 4'
20,000lb
$575


Roll tape printer
dot matrix
$295


Label printer
Direct thermal
$450


*Asterik
signifies combination of capacity and resolution is for NonCommercial
use. Please call or email for other sizes
Click
here to Order OnLine
Please
click on the other available options
Indicator/Printer
Stands
Fork
Lift Channels
Bumper
Guards
Pit
Frame for inground installations
*Please call or email for other sizes. Custom
sizes are no problem.
Click
here for set up instructions
Click
here if you would like to make your own Floor Scale
Frequently
asked questions
What
does it mean when a scale is NTEP approved?
When
a scale is NTEP approved that means that it is approved for
use in legal for trade applications. This means that you can legally
charge your customer based upon the weight reading of the scale. Only
scales that have passed stringent government testing are NTEP approved.

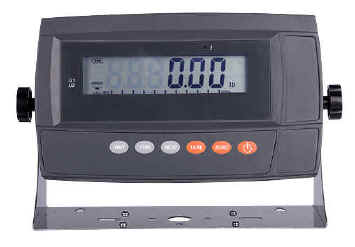

What
is the main difference between the three weight indicators (T500E, T500ESS &
TI600ESS)?
The TI500E has an enclosure made of metal & plastic. The five
front panel keys are LB/KG, TARE, Net/Gross, ZERO & PRINT. The
TI500ESS has the same features but it has a Stainless Steel enclosure.
The TI600ESS also has a stainless steel enclosure but in addition to having the
same 5 front panel keys as the TI500ESS, the TI600ESS also has 09 keys for
entering tare weights manually. For example: If you have a product in a
container and you only want the weight of the product. With the TI500E
& TI500ESS you would need to place the empty container on the scale then
press the "TARE" key to deduct the weight of the container. The
scale will then display the weight of the product you place in the
container. With the TI600ESS if you know the container weighs 100 lbs,
simply enter the value 100 using the 09 keys then press the "Tare"
key to deduct the weight. With the TI600ESS you do not need to start with an
empty container.
